HG type liquid mixer

Characteristic:
●
 Assembling with standard IEC motor flanges. Outdoor, anti-explosion can be integrated.
● Capable to work with variator or inverter to adjust its speed.
● Utilize spiral gear for speed reduction, hermetic gearbox with oil lubrication.
● Reducer and rack are assembled with flexible coupling, which is easy to maintenance.
● The rack applies fully hermetic structure, which is water proof and is capable to operate in the poor outdoor environment

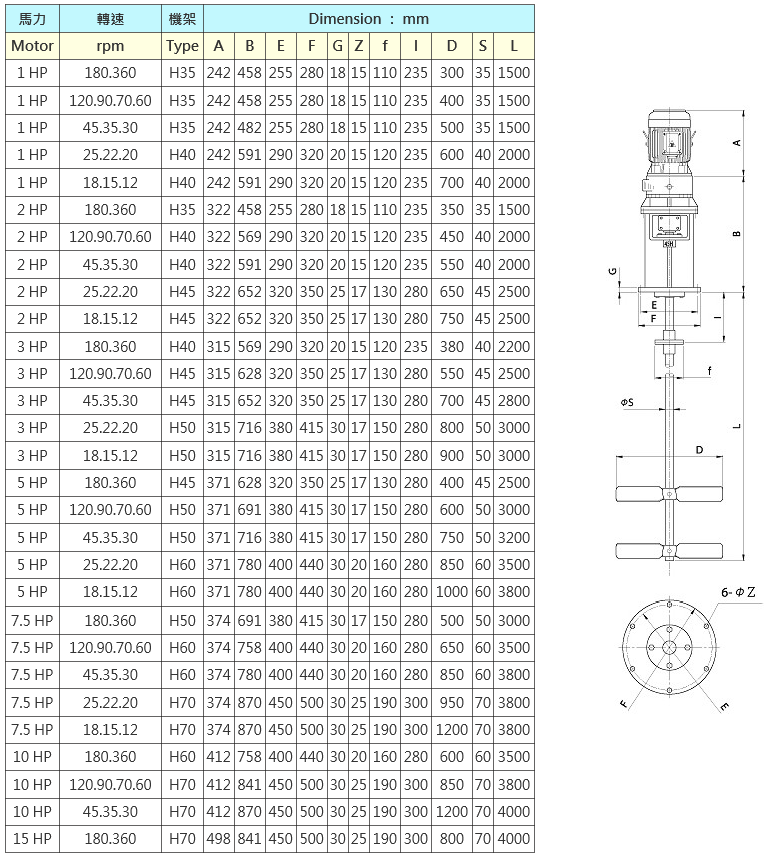

Dimension



 The speed on the table are based on 60Hz. Please multiple by 0.83 if 50Hz is used.

 For other power, speed, please contact us for details.

 Blade curvature (D), shaft diameter (S), shaft length (L) are all reference dimensions.

    Actual selection should depend on the conditions including dimensions of the tank, stirring objective,

    rotating speed, viscosity, blade configuration etc.

 When operating at a high speed or in a deeper tank of a large capacity, please add fixing rings and shaft seals in water for protection.

 The shaft and blades that directly contact the liquid are made of SUS304. If other specific material or anti-acid/alkali coating are needed, please contact us for details.
