D type liquid mixer

Spiral gear transmission integrated and low noise

※ Fully hermetic rack with dust proof and water proof.

Standardized specifications, which conclude a compact and practical model.

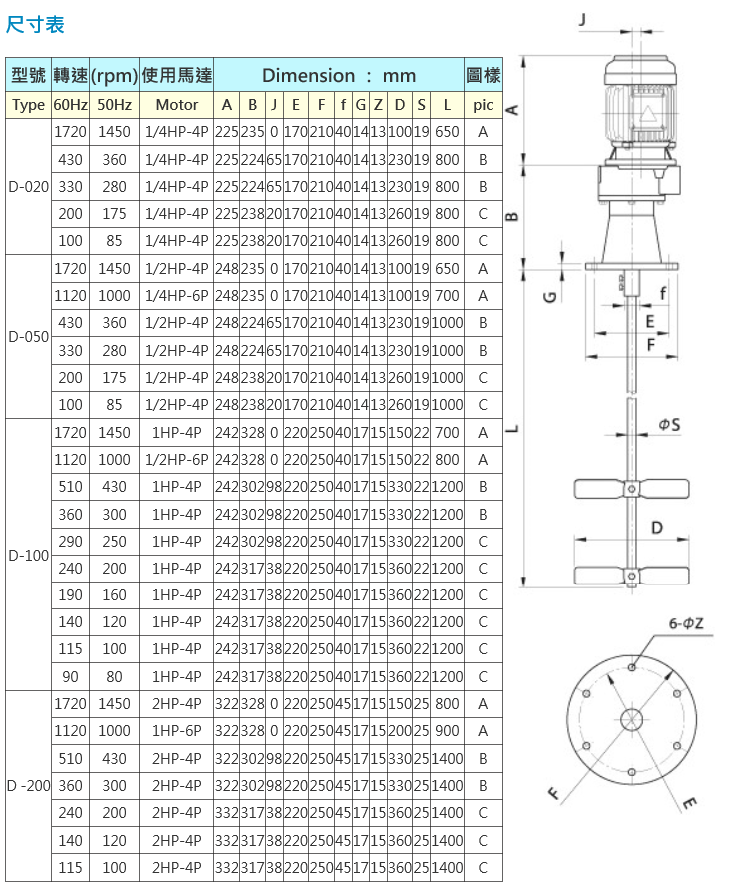

Dimension


 The bundled blades are flat type, double layered with two paddles or spiral type, single layered with three paddles, where their surfaces are acid washed.
 The shaft and blades that directly contact the liquid are made of SUS304. If other specific material or anti-acid/coating are needed, please contact us for details.
