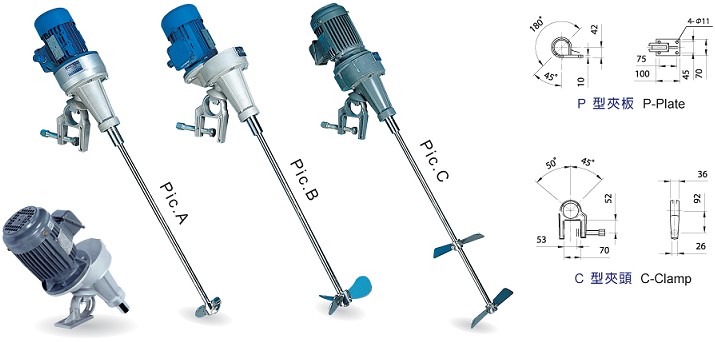

C type liquid mixer

 ● Machine body is aluminum alloy die casted and processed through T4、T6 heat treatment. The structure is extremely solid and stainless

 ● SUS 304 stainless clamp is made by precision de-waxing casting and is crack free.

 ● Fully Hemetic gearbox use high performance oil for lubrication; oil change is not required and maintenance is free.

 ● Double oil seal protection, free from the oil leakage. Appliable fields include food processing, pharmaceutical, chemical, environmental protection etc.

 ● Aluminum alloy made, elegant outfit, compact structure, easy to operate and move.




Structure:

1. Motor
2. Gear
3. Gear Box (Aluminum Alloy)
4. Base Frame (Aluminum Alloy)
5. Spindle (SS41)
6. Shaft (SUS304)
7. C-Clamp(SUS304)  8. Clamp Screw 9. Washer
10. Cap Screw  11. Bearing 12. Oil Seal





Dimension:
