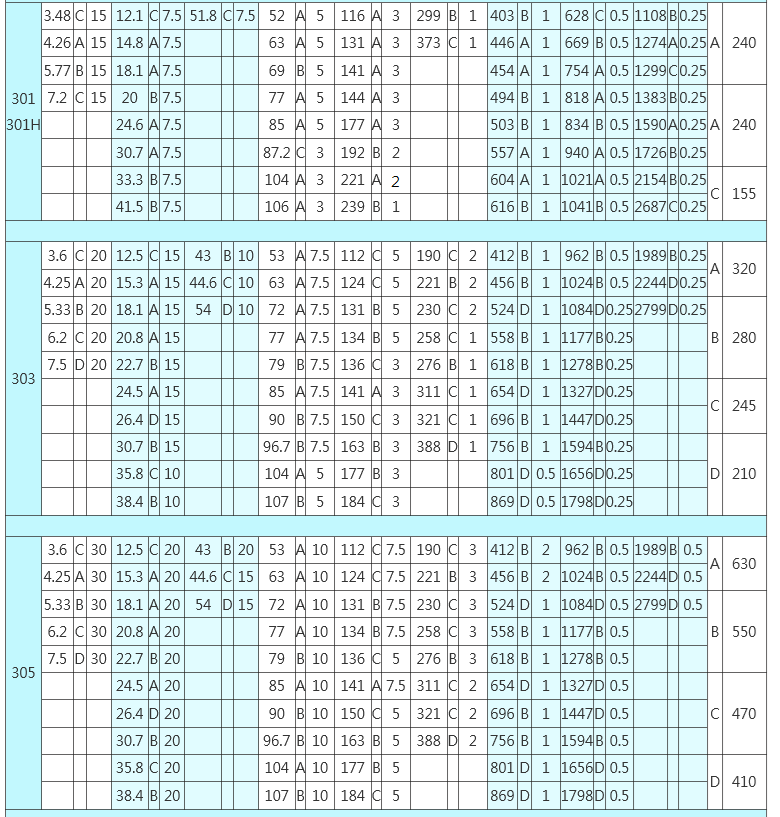

Technical Data

 Input speed 1750/1420rpm (60Hz/50Hz)


◆ REMARK:(A)=MAX INPUT HP.

Please determine ratio and torque to match each of gear stages A,B & C and find different max. torque & input Power.


Example:Type 280#,Ratio1/5.77
Gear Stage Code:(B)
Max Torque:45kg-m
Max Input HP:3HP
